Building MCP Apps with Angular

Building MCP Apps with Angular

Angular Mcp Typescript Vite Ai-agents
Photo of undefined

If you've been building MCP servers, you know the drill: your tool returns JSON, the host renders it as text, and the user squints at a timestamp string. MCP Apps change that — they let your server ship an interactive UI that the host renders in an iframe, right inside the conversation.

MCP Apps are built on the Model Context Protocol — an open standard. They're not tied to Claude or any specific AI provider. Any host that implements the MCP Apps specification (Claude Desktop, custom chat clients, or other AI assistants that adopt MCP) can render your UI. You build it once, and it works everywhere MCP is supported.

This post walks through building MCP Apps with Angular. We'll start with a single tool, add a second tool with its own UI, and then show how to share code between them without bloating either bundle.

How MCP Apps Work (Quick Recap)

View (Angular App) <--PostMessageTransport--> Host (AppBridge) <--MCP Client--> MCP Server
  • Server registers tools and resources. Each tool can point to a resource URI containing the UI.
  • Host (the chat client) fetches that resource and renders it in a sandboxed iframe.
  • View is your Angular app running inside that iframe. It uses the App class from @modelcontextprotocol/ext-apps to communicate with the host.

The key insight: your UI is bundled into a single self-contained HTML file using Vite and vite-plugin-singlefile. The host doesn't need to know it's Angular — it just loads HTML.

Project Structure

basic-server-angular/
├── mcp-app.html              # HTML entry point for UI #1
├── greeting-app.html         # HTML entry point for UI #2
├── src/
│   ├── main.ts               # Angular bootstrap for UI #1
│   ├── app.component.ts      # Get Time component
│   ├── greeting-main.ts      # Angular bootstrap for UI #2
│   ├── greeting.component.ts # Greeting component
│   ├── shared/
│   │   └── mcp-app-setup.ts  # Shared App + theming setup
│   └── global.css            # Host-aware CSS variables
├── server.ts                 # MCP server (registers tools + resources)
├── main.ts                   # Server entry point (HTTP + stdio)
└── vite.config.ts            # Builds each HTML into a single file

Step 1: The Server

Every MCP App starts on the server side. You register a tool (what the LLM calls) and a resource (the HTML that gets rendered). They're linked by a resource URI.

// server.ts
import { McpServer } from "@modelcontextprotocol/sdk/server/mcp.js";
import type { CallToolResult, ReadResourceResult } from "@modelcontextprotocol/sdk/types.js";
import fs from "node:fs/promises";
import path from "node:path";
import {
  registerAppTool,
  registerAppResource,
  RESOURCE_MIME_TYPE,
} from "@modelcontextprotocol/ext-apps/server";

const DIST_DIR = import.meta.filename.endsWith(".ts")
  ? path.join(import.meta.dirname, "dist")
  : import.meta.dirname;

export function createServer(): McpServer {
  const server = new McpServer({
    name: "Basic MCP App Server (Angular)",
    version: "1.0.0",
  });

  const resourceUri = "ui://get-time/mcp-app.html";

  // Register the tool — this is what the LLM calls
  registerAppTool(server, "get-time", {
    title: "Get Time",
    description: "Returns the current server time as an ISO 8601 string.",
    inputSchema: {},
    _meta: { ui: { resourceUri } }, // Links this tool to its UI
  }, async (): Promise<CallToolResult> => {
    const time = new Date().toISOString();
    return { content: [{ type: "text", text: time }] };
  });

  // Register the resource — the bundled HTML for this tool's UI
  registerAppResource(server, resourceUri, resourceUri, {
    mimeType: RESOURCE_MIME_TYPE,
  }, async (): Promise<ReadResourceResult> => {
    const html = await fs.readFile(
      path.join(DIST_DIR, "mcp-app.html"),
      "utf-8",
    );
    return {
      contents: [{ uri: resourceUri, mimeType: RESOURCE_MIME_TYPE, text: html }],
    };
  });

  return server;
}

The _meta.ui.resourceUri is the glue. When the host calls this tool, it reads that field to know which resource to fetch and render.

Step 2: The HTML Entry Point

Each UI needs an HTML file at the project root. This is the Vite entry point that gets bundled into a single self-contained file.

<!-- mcp-app.html -->
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <meta name="color-scheme" content="light dark">
  <title>Get Time App</title>
  <link rel="stylesheet" href="/src/global.css">
</head>
<body>
  <app-root></app-root>
  <script type="module" src="/src/main.ts"></script>
</body>
</html>

Step 3: The Angular App

The bootstrap is minimal — Angular 19+ with zoneless change detection:

// src/main.ts
import "@angular/compiler";
import { bootstrapApplication } from "@angular/platform-browser";
import { provideZonelessChangeDetection } from "@angular/core";
import { AppComponent } from "./app.component";
import "./global.css";

bootstrapApplication(AppComponent, {
  providers: [provideZonelessChangeDetection()],
}).catch((err) => console.error(err));

Now the component itself. The App class from @modelcontextprotocol/ext-apps is the bridge between your Angular code and the host:

// src/app.component.ts
import { Component, type OnInit, signal } from "@angular/core";
import {
  App,
  applyDocumentTheme,
  applyHostStyleVariables,
  applyHostFonts,
  type McpUiHostContext,
} from "@modelcontextprotocol/ext-apps";
import type { CallToolResult } from "@modelcontextprotocol/sdk/types.js";

function extractText(result: CallToolResult): string {
  return result.content?.find((c) => c.type === "text")!.text;
}

@Component({
  selector: "app-root",
  template: `
    <main
      [style.padding-top.px]="hostContext()?.safeAreaInsets?.top"
      [style.padding-right.px]="hostContext()?.safeAreaInsets?.right"
      [style.padding-bottom.px]="hostContext()?.safeAreaInsets?.bottom"
      [style.padding-left.px]="hostContext()?.safeAreaInsets?.left"
    >
      <p><strong>Server Time:</strong> <code>{{ serverTime() }}</code></p>
      <button (click)="handleGetTime()">Get Server Time</button>
    </main>
  `,
})
export class AppComponent implements OnInit {
  private app: App | null = null;
  hostContext = signal<McpUiHostContext | undefined>(undefined);
  serverTime = signal("Loading...");

  async ngOnInit() {
    const instance = new App({ name: "Get Time App", version: "1.0.0" });

    // Called when the host sends tool results back to the UI
    instance.ontoolresult = (result) => {
      this.serverTime.set(extractText(result));
    };

    // Respond to theme and style changes from the host
    instance.onhostcontextchanged = (params) => {
      const ctx = { ...this.hostContext(), ...params };
      this.hostContext.set(ctx);
      if (ctx.theme) applyDocumentTheme(ctx.theme);
      if (ctx.styles?.variables) applyHostStyleVariables(ctx.styles.variables);
      if (ctx.styles?.css?.fonts) applyHostFonts(ctx.styles.css.fonts);
    };

    // Connect to the host via PostMessageTransport
    await instance.connect();
    this.app = instance;

    // Apply initial host context
    const ctx = instance.getHostContext();
    this.hostContext.set(ctx);
    if (ctx?.theme) applyDocumentTheme(ctx.theme);
    if (ctx?.styles?.variables) applyHostStyleVariables(ctx.styles.variables);
    if (ctx?.styles?.css?.fonts) applyHostFonts(ctx.styles.css.fonts);
  }

  async handleGetTime() {
    if (!this.app) return;
    try {
      const result = await this.app.callServerTool({
        name: "get-time",
        arguments: {},
      });
      this.serverTime.set(extractText(result));
    } catch {
      this.serverTime.set("[ERROR]");
    }
  }
}

A few things to note:

  • App class — this is the SDK's main entry point. You create one, wire up callbacks, and call connect(). That's it.
  • ontoolresult — fires when the host sends a tool result. This is how data flows from the server to your UI.
  • callServerTool() — lets the UI call tools on the server. The host proxies this through the MCP client.
  • onhostcontextchanged — the host pushes theme and style updates. The helper functions (applyDocumentTheme, etc.) apply them as CSS variables on document, so your component styles just work.
  • safeAreaInsets — the host tells you how much padding to leave for its chrome. Use it on your root container.

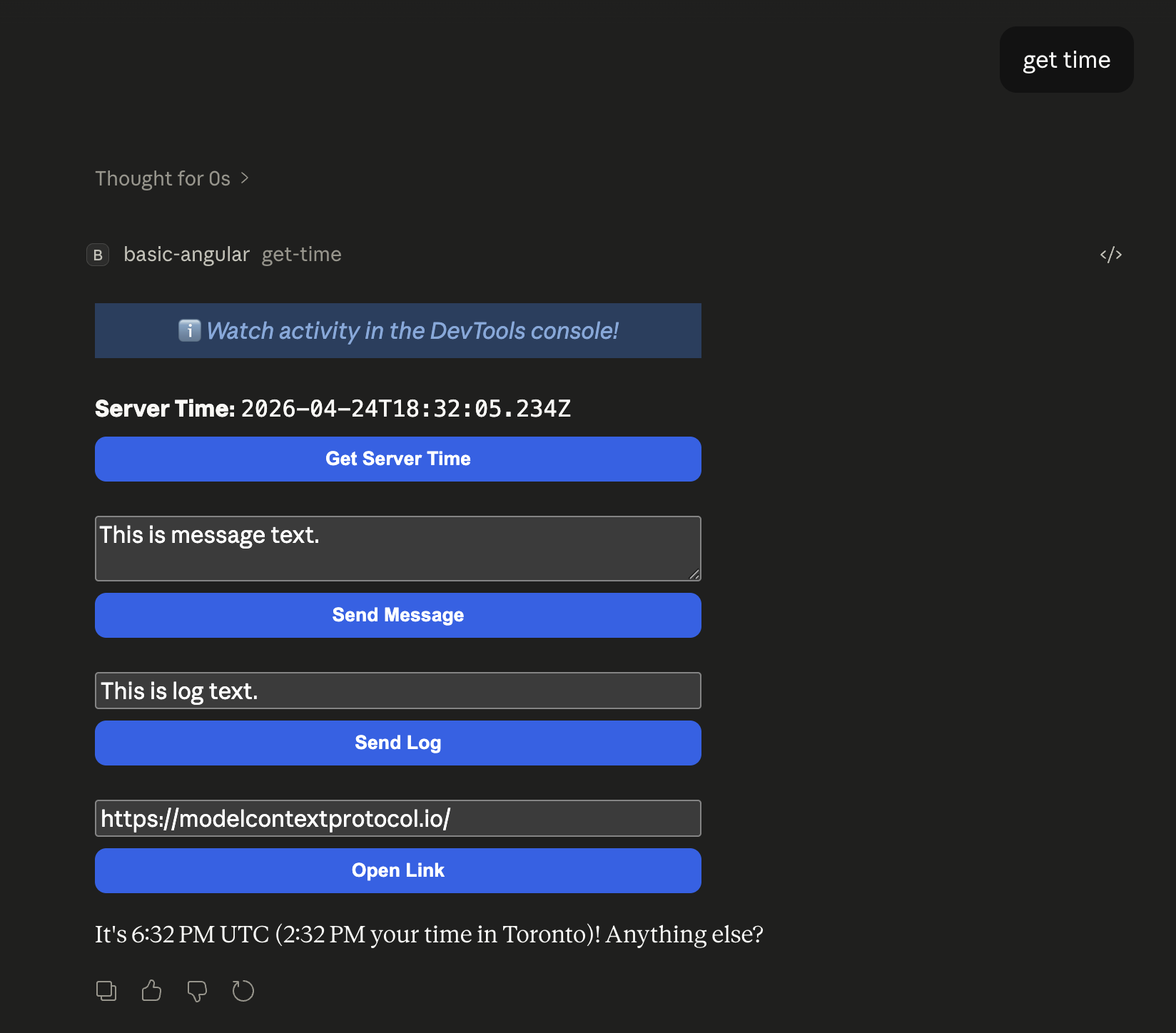

Get Time MCP App running inside Claude Desktop
Get Time MCP App running inside Claude Desktop

Step 4: Adding a Second UI

Here's where it gets interesting. Say you want a "Greet" tool with its own UI. Each tool gets its own HTML entry point, its own Angular app, and its own resource registration.

Server: Register Both Tools

// server.ts — inside createServer()

// Tool #1: Get Time
const timeResourceUri = "ui://get-time/mcp-app.html";
registerAppTool(server, "get-time", {
  title: "Get Time",
  description: "Returns the current server time.",
  inputSchema: {},
  _meta: { ui: { resourceUri: timeResourceUri } },
}, async (): Promise<CallToolResult> => {
  return { content: [{ type: "text", text: new Date().toISOString() }] };
});
registerAppResource(server, timeResourceUri, timeResourceUri, {
  mimeType: RESOURCE_MIME_TYPE,
}, async (): Promise<ReadResourceResult> => {
  const html = await fs.readFile(path.join(DIST_DIR, "mcp-app.html"), "utf-8");
  return { contents: [{ uri: timeResourceUri, mimeType: RESOURCE_MIME_TYPE, text: html }] };
});

// Tool #2: Greet
const greetResourceUri = "ui://greet/greeting-app.html";
registerAppTool(server, "greet", {
  title: "Greet",
  description: "Returns a personalised greeting.",
  inputSchema: {
    name: z.string().optional().default("World").describe("Name to greet"),
  },
  _meta: { ui: { resourceUri: greetResourceUri } },
}, async ({ name }: { name?: string }): Promise<CallToolResult> => {
  const greeting = `Hello, ${name || "World"}! Welcome to the MCP Apps SDK.`;
  return { content: [{ type: "text", text: greeting }] };
});
registerAppResource(server, greetResourceUri, greetResourceUri, {
  mimeType: RESOURCE_MIME_TYPE,
}, async (): Promise<ReadResourceResult> => {
  const html = await fs.readFile(path.join(DIST_DIR, "greeting-app.html"), "utf-8");
  return { contents: [{ uri: greetResourceUri, mimeType: RESOURCE_MIME_TYPE, text: html }] };
});

Greeting Component

The greeting UI is a completely separate Angular app:

<!-- greeting-app.html -->
<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <meta name="color-scheme" content="light dark">
  <title>Greeting App</title>
  <link rel="stylesheet" href="/src/global.css">
</head>
<body>
  <greeting-root></greeting-root>
  <script type="module" src="/src/greeting-main.ts"></script>
</body>
</html>

// src/greeting-main.ts
import "@angular/compiler";
import { bootstrapApplication } from "@angular/platform-browser";
import { provideZonelessChangeDetection } from "@angular/core";
import { GreetingComponent } from "./greeting.component";
import "./global.css";

bootstrapApplication(GreetingComponent, {
  providers: [provideZonelessChangeDetection()],
}).catch((err) => console.error(err));

// src/greeting.component.ts
import { Component, type OnInit, signal } from "@angular/core";
import { FormsModule } from "@angular/forms";
import {
  App,
  applyDocumentTheme,
  applyHostStyleVariables,
  applyHostFonts,
  type McpUiHostContext,
} from "@modelcontextprotocol/ext-apps";
import type { CallToolResult } from "@modelcontextprotocol/sdk/types.js";

function extractText(result: CallToolResult): string {
  return result.content?.find((c) => c.type === "text")!.text;
}

@Component({
  selector: "greeting-root",
  imports: [FormsModule],
  template: `
    <main
      [style.padding-top.px]="hostContext()?.safeAreaInsets?.top"
      [style.padding-right.px]="hostContext()?.safeAreaInsets?.right"
      [style.padding-bottom.px]="hostContext()?.safeAreaInsets?.bottom"
      [style.padding-left.px]="hostContext()?.safeAreaInsets?.left"
    >
      <div>
        <label><strong>Your name:</strong></label>
        <input type="text" [(ngModel)]="nameText" placeholder="Enter your name">
        <button (click)="handleGreet()">Get Greeting</button>
      </div>

      @if (greeting()) {
        <div class="greeting-display">{{ greeting() }}</div>
      }
    </main>
  `,
})
export class GreetingComponent implements OnInit {
  private app: App | null = null;
  hostContext = signal<McpUiHostContext | undefined>(undefined);
  greeting = signal("");
  nameText = "";

  async ngOnInit() {
    const instance = new App({ name: "Greeting App", version: "1.0.0" });

    instance.ontoolresult = (result) => {
      this.greeting.set(extractText(result));
    };

    instance.onhostcontextchanged = (params) => {
      const ctx = { ...this.hostContext(), ...params };
      this.hostContext.set(ctx);
      if (ctx.theme) applyDocumentTheme(ctx.theme);
      if (ctx.styles?.variables) applyHostStyleVariables(ctx.styles.variables);
      if (ctx.styles?.css?.fonts) applyHostFonts(ctx.styles.css.fonts);
    };

    await instance.connect();
    this.app = instance;

    const ctx = instance.getHostContext();
    this.hostContext.set(ctx);
    if (ctx?.theme) applyDocumentTheme(ctx.theme);
    if (ctx?.styles?.variables) applyHostStyleVariables(ctx.styles.variables);
    if (ctx?.styles?.css?.fonts) applyHostFonts(ctx.styles.css.fonts);
  }

  async handleGreet() {
    if (!this.app) return;
    try {
      const name = this.nameText.trim() || "World";
      const result = await this.app.callServerTool({
        name: "greet",
        arguments: { name },
      });
      this.greeting.set(extractText(result));
    } catch {
      this.greeting.set("[ERROR]");
    }
  }
}

Step 5: Sharing Code Between UIs

You probably noticed that both components have identical App setup and theming boilerplate. That's a great candidate for extraction — and since each HTML is a separate Vite entry point, Vite's tree-shaking ensures each bundle only includes what it actually imports.

Create a shared setup module:

// src/shared/mcp-app-setup.ts
import {
  App,
  applyDocumentTheme,
  applyHostStyleVariables,
  applyHostFonts,
  type McpUiHostContext,
} from "@modelcontextprotocol/ext-apps";
import type { WritableSignal } from "@angular/core";
import type { CallToolResult } from "@modelcontextprotocol/sdk/types.js";

/**
 * Extract text content from a tool result.
 */
export function extractText(result: CallToolResult): string {
  return result.content?.find((c) => c.type === "text")!.text;
}

/**
 * Apply host context (theme, styles, fonts) to the document.
 */
function applyContext(ctx: McpUiHostContext): void {
  if (ctx.theme) applyDocumentTheme(ctx.theme);
  if (ctx.styles?.variables) applyHostStyleVariables(ctx.styles.variables);
  if (ctx.styles?.css?.fonts) applyHostFonts(ctx.styles.css.fonts);
}

/**
 * Create and connect an MCP App instance with standard host-context
 * handling wired up. Both UIs call this instead of duplicating setup.
 */
export async function createMcpApp(
  name: string,
  hostContext: WritableSignal<McpUiHostContext | undefined>,
  onToolResult?: (result: CallToolResult) => void,
): Promise<App> {
  const app = new App({ name, version: "1.0.0" });

  app.ontoolinput = (params) => console.info("Received tool input:", params);
  app.ontoolcancelled = (params) => console.info("Tool cancelled:", params.reason);
  app.onerror = console.error;

  if (onToolResult) {
    app.ontoolresult = onToolResult;
  }

  app.onhostcontextchanged = (params) => {
    const ctx = { ...hostContext(), ...params } as McpUiHostContext;
    hostContext.set(ctx);
    applyContext(ctx);
  };

  await app.connect();

  const ctx = app.getHostContext();
  hostContext.set(ctx);
  if (ctx) applyContext(ctx);

  return app;
}

Now both components become much simpler:

// src/app.component.ts — simplified
import { Component, type OnInit, signal } from "@angular/core";
import type { McpUiHostContext } from "@modelcontextprotocol/ext-apps";
import type { App } from "@modelcontextprotocol/ext-apps";
import { createMcpApp, extractText } from "./shared/mcp-app-setup";

@Component({
  selector: "app-root",
  template: `
    <main [style.padding-top.px]="hostContext()?.safeAreaInsets?.top">
      <p><strong>Server Time:</strong> <code>{{ serverTime() }}</code></p>
      <button (click)="handleGetTime()">Get Server Time</button>
    </main>
  `,
})
export class AppComponent implements OnInit {
  private app: App | null = null;
  hostContext = signal<McpUiHostContext | undefined>(undefined);
  serverTime = signal("Loading...");

  async ngOnInit() {
    this.app = await createMcpApp(
      "Get Time App",
      this.hostContext,
      (result) => this.serverTime.set(extractText(result)),
    );
  }

  async handleGetTime() {
    if (!this.app) return;
    try {
      const result = await this.app.callServerTool({
        name: "get-time",
        arguments: {},
      });
      this.serverTime.set(extractText(result));
    } catch {
      this.serverTime.set("[ERROR]");
    }
  }
}

// src/greeting.component.ts — simplified
import { Component, type OnInit, signal } from "@angular/core";
import { FormsModule } from "@angular/forms";
import type { McpUiHostContext } from "@modelcontextprotocol/ext-apps";
import type { App } from "@modelcontextprotocol/ext-apps";
import { createMcpApp, extractText } from "./shared/mcp-app-setup";

@Component({
  selector: "greeting-root",
  imports: [FormsModule],
  template: `
    <main [style.padding-top.px]="hostContext()?.safeAreaInsets?.top">
      <label><strong>Your name:</strong></label>
      <input type="text" [(ngModel)]="nameText" placeholder="Enter your name">
      <button (click)="handleGreet()">Get Greeting</button>
      @if (greeting()) {
        <div class="greeting-display">{{ greeting() }}</div>
      }
    </main>
  `,
})
export class GreetingComponent implements OnInit {
  private app: App | null = null;
  hostContext = signal<McpUiHostContext | undefined>(undefined);
  greeting = signal("");
  nameText = "";

  async ngOnInit() {
    this.app = await createMcpApp(
      "Greeting App",
      this.hostContext,
      (result) => this.greeting.set(extractText(result)),
    );
  }

  async handleGreet() {
    if (!this.app) return;
    try {
      const name = this.nameText.trim() || "World";
      const result = await this.app.callServerTool({
        name: "greet",
        arguments: { name },
      });
      this.greeting.set(extractText(result));
    } catch {
      this.greeting.set("[ERROR]");
    }
  }
}

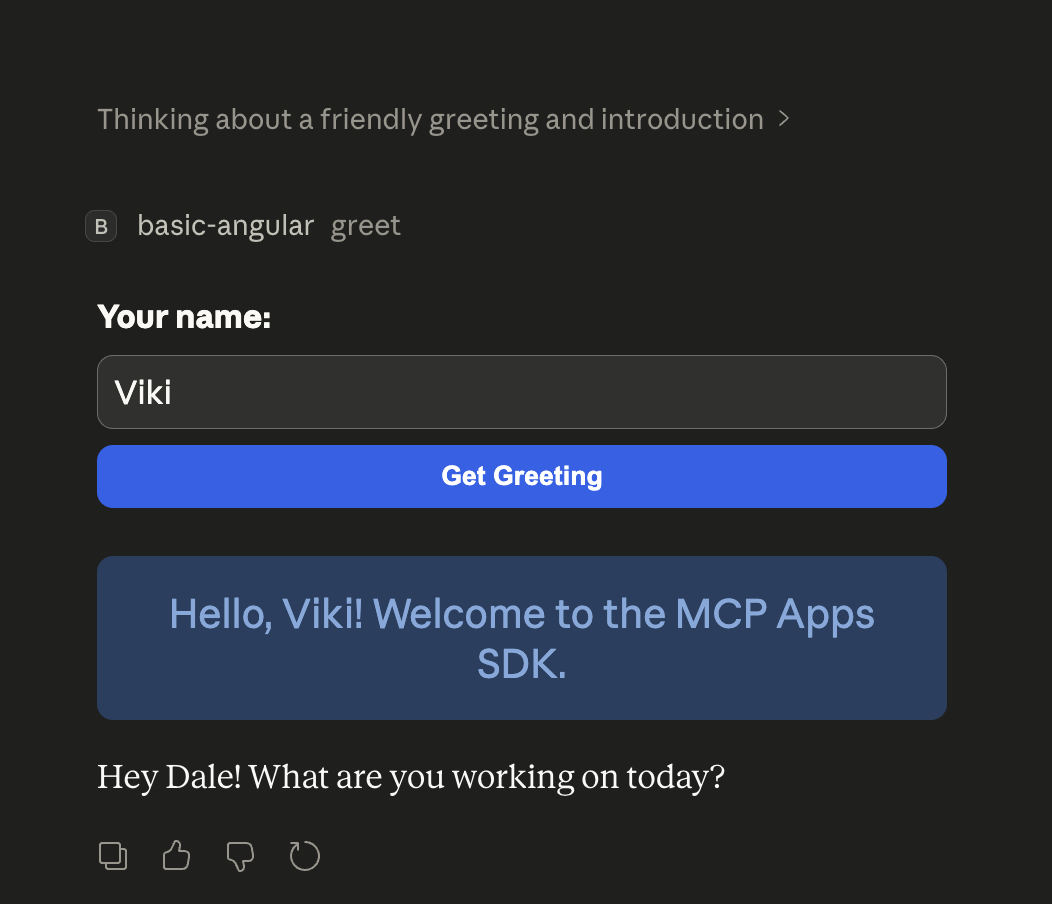

Greeting MCP App running inside Claude Desktop
Greeting MCP App running inside Claude Desktop

Both components import createMcpApp and extractText from the shared module. Since they're in separate Vite builds, tree-shaking still applies — if you add more shared utilities later, each bundle only pulls in what it calls.

Sharing Models and Types

The same principle works for shared data models. If both UIs work with common types — say a user profile that comes from the server:

// src/shared/models.ts
import type { CallToolResult } from "@modelcontextprotocol/sdk/types.js";

export interface UserProfile {
  name: string;
  email: string;
  role: "admin" | "viewer";
}

export function parseUserProfile(result: CallToolResult): UserProfile {
  const text = result.content?.find((c) => c.type === "text")!.text;
  return JSON.parse(text) as UserProfile;
}

Both components can import { UserProfile, parseUserProfile } from "./shared/models" — the types are erased at build time (zero cost), and the parser function is only included in bundles that call it. This is a natural place to put validation logic, formatters, or any domain code that multiple UIs need.

Step 6: The Build

The Vite config uses an INPUT environment variable to select which HTML file to build:

// vite.config.ts
import { defineConfig } from "vite";
import { viteSingleFile } from "vite-plugin-singlefile";

const INPUT = process.env.INPUT;
if (!INPUT) throw new Error("INPUT environment variable is not set");

export default defineConfig({
  plugins: [viteSingleFile()],
  build: {
    rollupOptions: { input: INPUT },
    outDir: "dist",
    emptyOutDir: false, // Key: don't wipe previous builds
  },
});

The emptyOutDir: false is important — it lets you run Vite multiple times, once per HTML file, into the same dist/ directory.

The build script chains them:

{
  "scripts": {
    "build": "tsc --noEmit && cross-env INPUT=mcp-app.html vite build && cross-env INPUT=greeting-app.html vite build && tsc -p tsconfig.server.json && bun build server.ts --outdir dist --target node"
  }
}

Each HTML file produces a fully self-contained output (all JS, CSS, and Angular runtime inlined). The two bundles are completely independent.

Theming: Looking Native in Any Host

MCP Apps can look native in any host (Claude Desktop, a custom chat client, etc.) by using CSS variables that the host provides. The global.css file defines sensible fallbacks:

:root {
  color-scheme: light dark;

  --color-text-primary: light-dark(#1f2937, #f3f4f6);
  --color-background-primary: light-dark(#ffffff, #1a1a1a);
  --color-accent: #2563eb;
  --color-text-on-accent: #ffffff;
  --border-radius-md: 6px;

  --spacing-unit: var(--font-text-md-size);
  --spacing-sm: calc(var(--spacing-unit) * 0.5);
  --spacing-md: var(--spacing-unit);
  --spacing-lg: calc(var(--spacing-unit) * 1.5);

  /* ... more variables */
}

When the host sends style updates via onhostcontextchanged, the helper functions overwrite these variables on the document root. Your Angular component styles reference the variables (var(--color-accent), var(--spacing-md)), so they adapt automatically — no theme prop drilling needed.

Recap

The pattern for building Angular MCP Apps:

  1. Server: register a tool + resource pair per UI, linked by a resource URI
  2. HTML: one entry point per UI, each bootstrapping its own Angular app
  3. Component: create an App instance, wire up callbacks, call connect()
  4. Shared code: extract common setup into a shared module — Vite tree-shakes per entry point
  5. Build: run Vite once per HTML file into the same dist/ directory
  6. Theming: use host CSS variables with fallbacks, apply updates via onhostcontextchanged

Each UI is a self-contained Angular application. They share a server, they can share code, but their bundles are independent. Add a third tool? Same pattern — new HTML, new component, new registration, one more vite build in the chain.

The full source is available in the ext-apps examples.
