How to Embed Interactive Charts in AnalogJS Markdown Blog Posts

Static markdown is great for most blog posts. But occasionally you want a reader to interact with the content — drag a slider, hover a bar to see the exact value. AnalogJS does not ship that capability out of the box, but the pieces are all there. This post documents the architecture that powers the live charts you see on this blog, and shows you exactly how to add your own.

The two widgets below are live — hover the bars, drag the slider.

The problem: <script> tags don't work in markdown

Analog renders markdown via the <analog-markdown> component. Raw HTML in the markdown source does survive — Analog passes it through Angular's bypassSecurityTrustHtml — so a bare <div> or <figure> will land in the DOM. But inline <script> tags never run; even if they did, a script injected into an already-bootstrapped Angular app won't execute.

The solution is to leave an empty placeholder element in the markdown and mount a real Angular component into it after the markdown has rendered.

Step 1 — Write a placeholder in the markdown

In your .md file, drop an empty <div> with a data-chart attribute and a plain-text fallback. The fallback is shown when JavaScript is off or before the component mounts:

<div data-chart="speed">Chart: decode speed by prompt length.</div>

The value of data-chart is your key. You can have as many as you like per post; the mounter finds them all with querySelectorAll('[data-chart]').

Step 2 — Create a co-located manifest

Next to your markdown file src/content/<slug>.md, create a folder src/content/<slug>/ and put a charts.ts inside it. Its default export maps every data-chart key to an Angular component — and optional inputs to pass to it:

// src/content/my-post/charts.ts
import { BarChartComponent } from '../../app/blog/charts/bar-chart.component'
import { ChartManifest } from '../../app/blog/charts/mount-charts'
import { speedConfig } from './benchmark.data'

const manifest: ChartManifest = {
  speed: { component: BarChartComponent, inputs: { config: speedConfig } },
}

export default manifest

That is the entire per-post registration. There is no central file to edit.

Step 3 — Understand the generic mounter

The shared mounter lives at apps/blog-app/src/app/blog/charts/mount-charts.ts. The key line is:

const manifests = import.meta.glob<{ default: ChartManifest }>('/src/content/*/charts.ts')

Vite resolves this glob at build time and creates a lazy import for every charts.ts it finds under src/content/. When mountInteractiveCharts is called for a particular slug it loads only that post's manifest, finds the [data-chart] placeholders in the already-rendered DOM, clears the fallback text, and mounts each component:

export async function mountInteractiveCharts(
  root: ParentNode,
  envInjector: EnvironmentInjector,
  appRef: ApplicationRef,
  slug: string,
): Promise<ComponentRef<unknown>[]> {
  const loader = manifests[`/src/content/${slug}/charts.ts`]
  if (!loader) return []

  const registry = (await loader()).default ?? {}
  const refs: ComponentRef<unknown>[] = []

  root.querySelectorAll<HTMLElement>('[data-chart]').forEach((host) => {
    if (host.dataset['mounted']) return
    const entry = registry[host.dataset['chart'] ?? '']
    if (!entry) return

    host.innerHTML = '' // drop the no-JS fallback caption
    const ref = createComponent(entry.component, { hostElement: host, environmentInjector: envInjector })
    if (entry.inputs) {
      for (const [key, value] of Object.entries(entry.inputs)) ref.setInput(key, value)
    }
    appRef.attachView(ref.hostView)
    ref.changeDetectorRef.detectChanges()
    host.dataset['mounted'] = 'true'
    refs.push(ref)
  })

  return refs
}

createComponent with a hostElement turns the placeholder div into the component's host node. setInput applies any inputs from the manifest. appRef.attachView registers the view with Angular's change-detection tree. The data-mounted flag prevents double-mounting if the effect fires more than once.

Step 4 — How the route triggers the mounter

The blog post route (apps/blog-app/src/app/routes/blog/[slug].ts) drives everything. In ngAfterViewInit it sets up an effect that watches for the post signal to resolve, then calls mountCharts:

ngAfterViewInit() {
  this.loadGiscusScript()
  effect(() => {
    if (this.post()) {
      setTimeout(() => {
        this.addCopyButtons()
        void this.mountCharts().catch((error) => console.error('Failed to mount charts', error))
      })
    }
  }, { injector: this.injector })
}

The setTimeout (with no delay) yields to the microtask queue so the markdown has finished rendering into the DOM before the mounter scans for placeholders.

mountCharts itself is browser-only and lazy-loads the mounter module on first call:

private async mountCharts() {
  if (!isPlatformBrowser(this.platformId)) return
  const slug = this.post()?.attributes.slug
  if (!slug || !this.document.querySelector('[data-chart]')) return
  const { mountInteractiveCharts } = await import('../../blog/charts/mount-charts')
  this.destroyMountedCharts()
  this.chartRefs = await mountInteractiveCharts(this.document, this.envInjector, this.appRef, slug)
}

isPlatformBrowser is the SSR guard. During prerendering the platform is server, so mountCharts returns immediately and no DOM manipulation happens. This means the post prerenders cleanly with the fallback text visible.

ngOnDestroy cleans up so components do not leak across navigations:

private destroyMountedCharts() {
  for (const ref of this.chartRefs) {
    this.appRef.detachView(ref.hostView)
    ref.destroy()
  }
  this.chartRefs = []
}

ngOnDestroy() {
  this.destroyMountedCharts()
}

The mounting process, step by step

Here is the whole pipeline in one interactive view. Step through it — or hit Play — and watch a placeholder turn into a live component:

Fittingly, that diagram is itself one of these mounted components — a bespoke MountFlowComponent registered under the mount-flow key in this post's charts.ts.

Gotcha 1 — tsconfig must include content TypeScript files

The charts.ts and component files you drop under src/content/ are not part of the default TypeScript program. They are discovered only at runtime via import.meta.glob, which Vite resolves — but the TypeScript compiler (used for type-checking and the Nx build) needs to know about them too.

apps/blog-app/tsconfig.app.json already has the right include entries:

"include": [
  "src/**/*.d.ts",
  "src/app/routes/**/*.ts",
  "src/app/pages/**/*.page.ts",
  "src/app/blog/**/*.ts",
  "src/content/**/*.ts"
]

Without "src/content/**/*.ts" the compiler treats those files as orphaned, serves them untranspiled, and you get runtime errors like Missing initializer in const declaration when the browser tries to parse raw TypeScript.

Gotcha 2 — write tags as entities in inline code

This bit the live demo while writing this very post. The markdown renderer passes inline-code content through unescaped, so a single-backtick span containing a script tag emits a real element into the DOM. The browser treats it as a raw-text element and swallows the rest of the article — the post silently cuts off.

The fix: inside inline code, write angle brackets as HTML entities. Compare what you type in the markdown source:

Bad:   `<script>`        becomes a live element, truncates the post
Good:  `&lt;script&gt;`   renders as the visible text <script>, safe

Fenced code blocks like this one are highlighted by Prism and escaped automatically, so multi-line examples are safe as-is — this only affects single-backtick spans.

Gotcha 3 — Shadow DOM isolates chart styles from the article

Chart components use encapsulation: ViewEncapsulation.ShadowDom:

@Component({
  selector: 'blog-bar-chart',
  standalone: true,
  encapsulation: ViewEncapsulation.ShadowDom,
  // …
})

The article template applies Tailwind utilities like text-center and text-lg to its content wrapper. Without shadow DOM those would leak into the chart, centering the bars and resizing the labels. Shadow DOM creates a hard style boundary so the chart's own CSS is the only CSS that applies inside it.

The tradeoff: global Tailwind utilities cannot cross that boundary either, so the chart must self-style. The components use a #161b22 dark card with #30363d borders and #7c9cff accent — a palette that works on both light and dark article pages.

A bespoke per-post component

You are not limited to the shared BarChartComponent. Any standalone Angular component works. The kv-slider.component.ts file in this post's folder is a self-contained example — no external dependencies, signal-based reactivity. It is the second widget at the top of this post:

@Component({
  selector: 'blog-demo-slider',
  standalone: true,
  encapsulation: ViewEncapsulation.ShadowDom,
  // template + styles inline…
})
export class DemoSliderComponent {
  readonly ctx = signal(8192)
  readonly ctxLabel = computed(() => fmtCtx(this.ctx()))
  readonly mem = computed(() => fmtMem(BYTES_PER_TOKEN * this.ctx()))
  readonly pct = computed(() => (this.ctx() / MAX_CTX) * 100)
}

The mem and pct computed signals recalculate every time ctx changes, so the number and bar reflow on every slider tick — no imperative event handling, no manual DOM writes.

Does it stay fast?

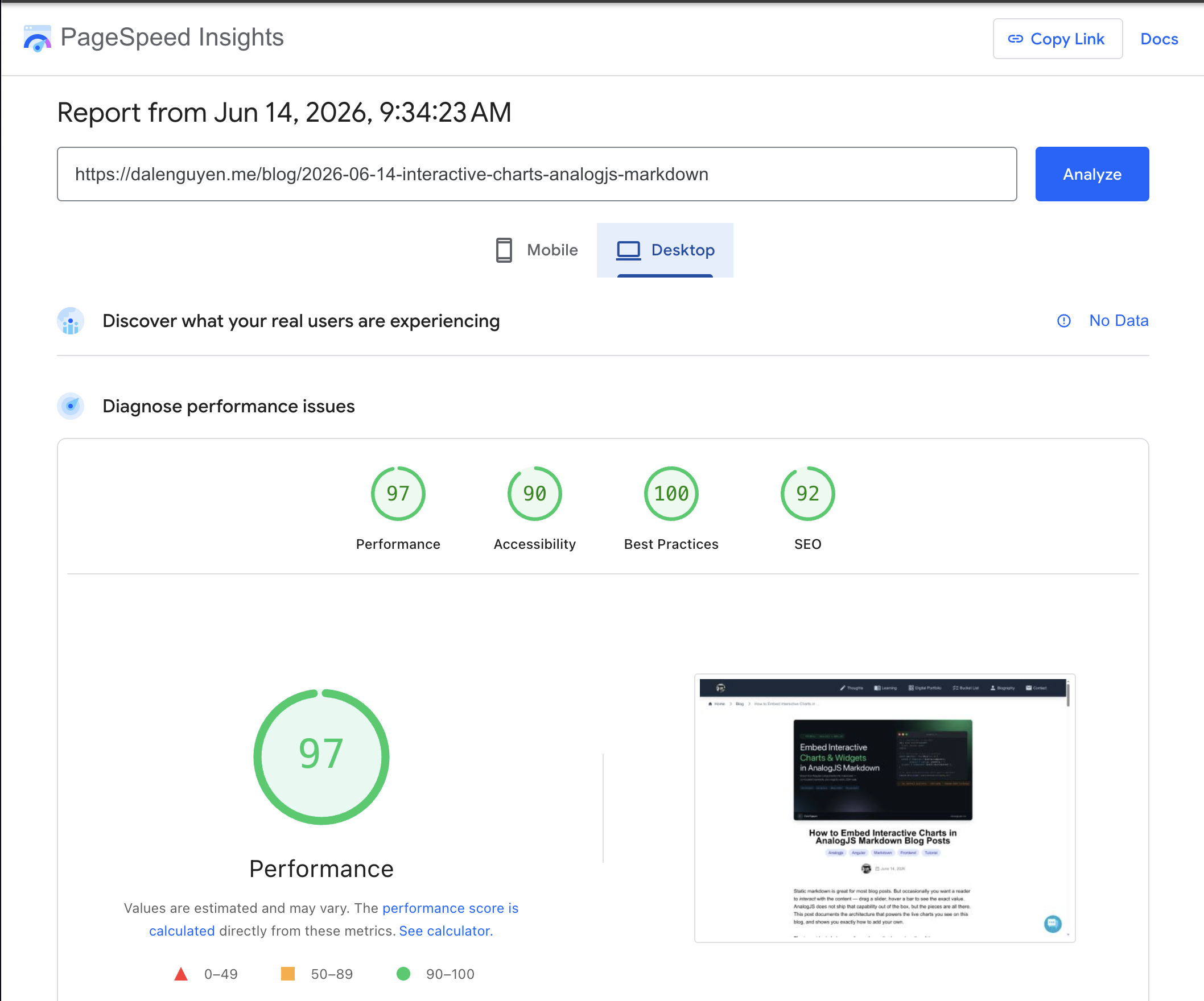

Yes — and that is the whole point of the SSR-safe, lazy design. The fallback text is what prerenders, the chart code is loaded only in the browser and only on posts that actually use it, and each widget's styles are scoped behind a shadow boundary. So the interactivity costs almost nothing on first paint. Here is this very page on PageSpeed Insights (desktop):

Adding your own interactive widget — the full recipe

1. In your markdown, write <div data-chart="my-key">Fallback text for no-JS readers.</div>.
2. Create src/content/<your-slug>/charts.ts with a default export mapping "my-key" to your component (and any inputs).
3. That is it. The import.meta.glob in mount-charts.ts discovers the new manifest automatically — no shared file needs editing.

If you are reusing the shared BarChartComponent, put your data in a co-located *.data.ts file that exports a BarChartConfig. If you are building something custom, write a standalone component with ViewEncapsulation.ShadowDom, drop it in the same folder, and reference it in the manifest.

The architecture keeps each post entirely self-contained. Every chart, every data file, every bespoke component lives next to its markdown. Delete the post folder and everything goes with it.
