Building PDF Open Source Services with Angular & GCP — PDF AI Chat

Welcome to the first part of the journey in building open source PDF service using Angular (Analogjs), Firestore, Cloud Storage, and CloudRun. This project serves as a platform for sharing my knowledge, continually learning best practices, and simultaneously contributing to the community.

Demo: https://pdfun.xyz

GitHub - dalenguyen/pdfun

The solution is built around GCP ecosystem, it’s better to deploy the project on GCP, so it can access their services. There are two parts of the solution:

Web UI (Analogjs — Angular): handle user interaction
Backend (Node — Express): process PDF files

In this part, we will explore the process of building a solution that you can chat with your PDF file using AI.

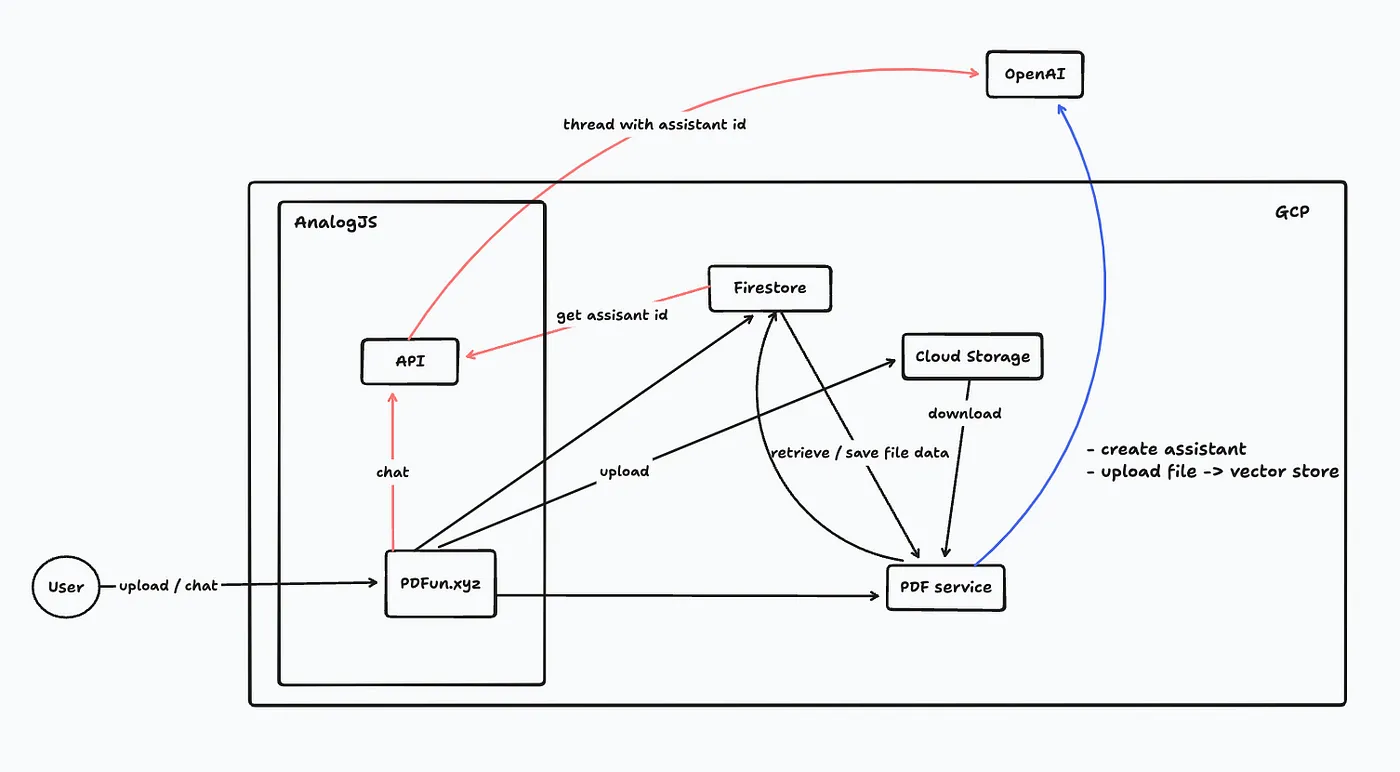

Architecture Overview

In general, there’re two parts of the process: uploading PDF file & Chat with your PDF.

Uploading PDF file

This is the first step before you can chat with your PDF — uploading a PDF file. Here is the process:

User uploads an PDF file -> Cloud Storage -> Save metadata to Firestore
Firestore -> trigger PDF service (cloud run service)

Create an OpenAI assistant
Download PDF file from Cloud storage
Upload PDF file -> OpenAI -> vector store
Add vector store -> OpenAI Assistant
Save assistant data -> Firestore

// pdf-chat.handler.ts

export const handlePDFChat = async (uploadedFileData: UploadedFile, documentPath: string) => {
  const filePath = await downloadFile(uploadedFileData)
  const assistant = await createAIAssistant()
  console.log(`Created assistant - ${assistant.id}`)

  const vectorStore = await uploadLoadFileAndAddToVectorStore(filePath)
  console.log(`Created vector store - ${vectorStore.name}`)

  const result = await addVectorStoreToAssistant(assistant, vectorStore)
  console.log(`Assigned vector store (${vectorStore.name}) to assistant (${assistant.id})`)

  await updateDocument(documentPath, { assistant: result })
  console.log(`Finished uploading ${uploadedFileData.fileName}`)
}

Chat with your PDF

This is the next step after your PDF file is processed. After you upload your PDF file, you will be redirected to a chat page with the document id in the param, so we can use it to retrieve data from firestore.

//pdf-chat/index.page.ts

override async onUpload(event: FileUploadHandlerEvent) {
// set a new document Id if users want to retry without reloading the page
this.currentID.set(nanoid())

    const file = event.files[0]

    if (file) {
      this.loading.set(true)

      const fileName = `pdfun-${String(Date.now())}.pdf`

      // Upload file to Cloud Storage
      const storageRef = ref(
        this.storage,
        `${this.generateFilePath()}/${fileName}`
      )
      const result = await uploadBytesResumable(storageRef, file)

      // Update file data to Firestore
      if (result.state === 'success') {
        const uploadFileData: UploadedFile = {
          fileName,
          pdfId: this.currentID(),
          taskType: TaskType.PDF_CHAT,
          ...
        }

        await setDoc(this.docRef(), uploadFileData)

        // Navigate to the chat page after uploading <----------
        this.router.navigate([`pdf-chat/${this.currentID()}`], {
          state: {
            filePath: this.generateFilePath(),
            fileName: file.name,
          },
        })
      } else {
        this.loading.set(false)
        this.errorMessage.set('Failed to upload file. Please try again later.')
      }
    }
}

Since we have the assistant id saved from the previous process, so every time you send a chat message, the assistant id is included, so you can chat with the correct data.

On the chat page, we need to listen to the document, and make sure that the assistant exists before chatting.

// [pdfId].page.ts

async ngOnInit(): Promise<void> {
const docRef = doc(this.firestore, `${this.filePath}/${this.pdfId()}`)

const unsubscribe = onSnapshot(
  docRef as DocumentReference<UploadedFile>,
  (doc) => {
  if (doc.data()?.assistant) {

          // Assistant exists!
          this.assistant.set(doc.data()?.assistant)
          this.loading.set(false)
          unsubscribe()
        }
      },
      (error: Error) => {
        this.response.set(error.message)
      }
  )
}

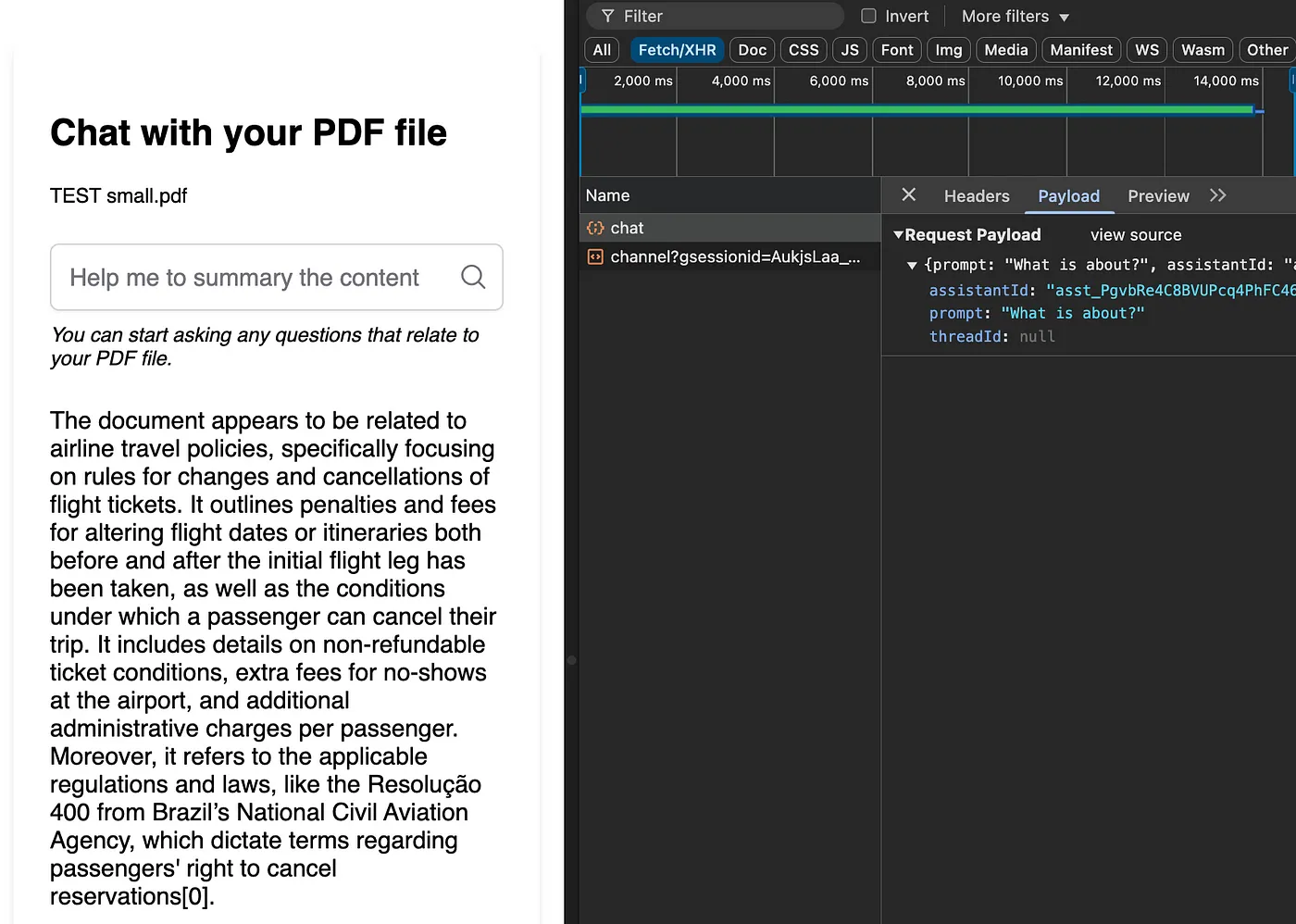

After that, each chat message will include the assistant, so the backend don’t need to read data from Firestore.

// [pdfId].page.ts

async sendChat(assistantId: string) {
this.response.set('')
if (this.prompt().trim() === '') return

    this.responseLoading.set(true)

    try {
      const result = await lastValueFrom(
        this.http.post<{ response: string; threadId?: string }>(
          '/api/v1/chat',
          {
            prompt: this.prompt(),
            assistantId,
            threadId: this.threadId(),
          }
        )
      )

      if (result.threadId) {
        this.threadId.set(result.threadId)
      }

      this.response.set(result.response)
    } catch (error) {
      this.response.set('Error processing your request. Please try again.')
    } finally {
      this.responseLoading.set(false)
      this.prompt.set('')
    }
}

For the backend that handles the chat, I’m using Analogjs, so it’s included. You can create any API that you want to the handle the chat.

// chat.post.ts

export default defineEventHandler(async (event) => {
  const { assistantId, prompt, threadId } = await readBody(event)

  try {
    // Reuse existing thread or create new one
    const thread = threadId ? await openai.beta.threads.retrieve(threadId) : await openai.beta.threads.create()

    // Add message to existing thread
    await openai.beta.threads.messages.create(thread.id, {
      role: 'user',
      content: prompt,
    })

    // Run the thread and wait for the result
    const run = await openai.beta.threads.runs.createAndPoll(thread.id, {
      assistant_id: assistantId,
    })

    // Retrieve messages from the thread run
    const messages = await openai.beta.threads.messages.list(thread.id, {
      run_id: run.id,
    })

    // Get the last message from the retrieved messages
    const message = messages.data.pop()!

    let response = ''

    // Check if the message content is not empty and is of type 'text'
    if (message.content.length > 0 && message.content[0].type === 'text') {
      const { text } = message.content[0]
      /// ......

      // Set the final response text
      response = text.value
    }

    return {
      response: response,
      threadId: thread.id,
    }
  } catch (error) {
    console.error('Chat error:', error)
    return {
      response: 'Error processing your request',
      threadId: null,
    }
  }
})

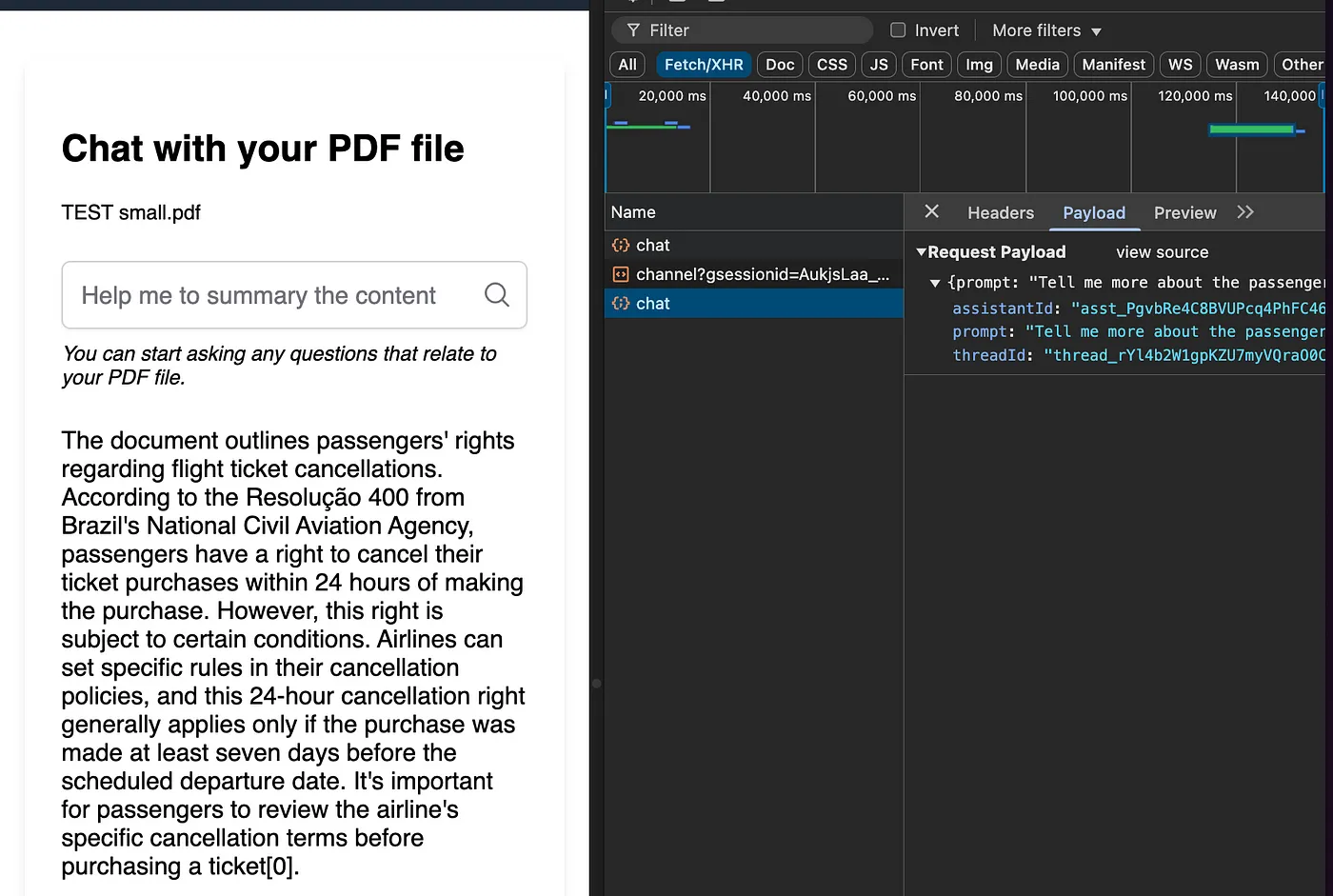

Second chat will include threadId for persistent previous context

Now we a fully running solution for chatting with your PDF files using OpenAI and https://pdfun.xyz.

Questions?

If you have any questions or run into any issues, please don’t hesitate to create an issue on our GitHub repository. Alternatively, you can chat with me. I’m here to help and would love to hear your feedback.

Stay tuned for the next part. Until then, happy coding!
